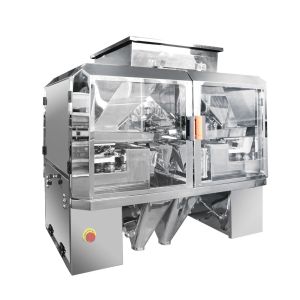

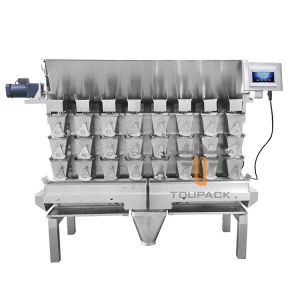

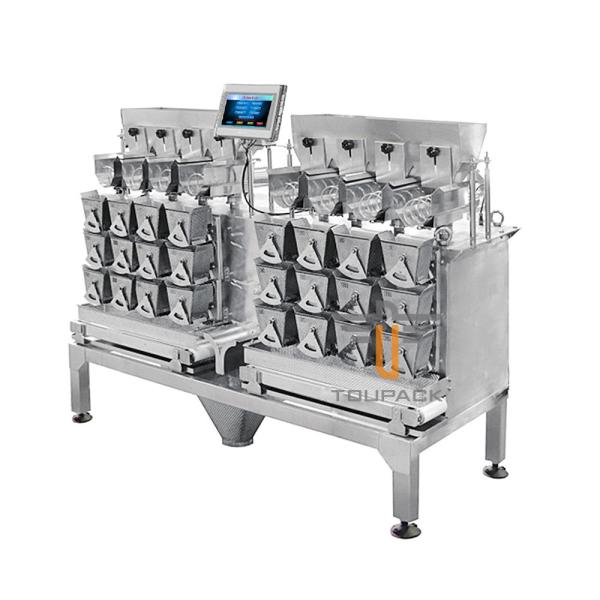

Sticky FoodPickled Vegetable 1/2/4/8/10/14 head Linear Weigher Packaging
Machine Support Customer-Made
Application:
Applicable for fast weighing of sticky or crispy products, such as
kimchi, chocolate, biscuit, meat loaf, ribs, etc.
Main Function & Features:
1. Tri-layer hopper design to effectively save production space.
2. “Scraping” mechanical design to effectively solve the problem of
weighing sticky and oily products, like spicy small fish, spicy beef jerky and dried spicy beancurd, etc.
3. Screwing hopper doors to ensure product discharge without any
blockage.
4. Screwing feeding system to ensure smooth discharge.
5. Product collection in final belt conveyor to bring faster and
more effective conveying.
6. Both hoppers and feeding chutes are dismountable for easy
cleaning and maintenance.
7. IP 65 dust and water proof design.
Specifications:
Single Head:
Model
TY-A-M14-1; TY-A-P14-1
Max. Weighing (one hopper)
2000g
Accuracy
x (0.5)
Min. Scale Interval
0.1g
Max. Speed
15 WPM
Hopper Volume
0.8L
Control System
PLC
HMI
7’’ color touch screen
Power Supply
AC220V ±10% 50HZ / 60HZ, 2KW
Packing Dimension
1,000(L)*1,600W)*1,985H)mm
Package weight
110kg
Double Head:
Model
TY-A-M92-3
Max. Weighing (one hopper)
1000g
Accuracy
x (0.5)
Max. Scale Interval
0.1g
Max. Speed
10-15 WPM
Hopper Volume
0.8L
Control System
MCU
HMI
7’’ color touch screen
Power Supply
AC220V ±10% 50HZ/60HZ, 1KW
Packing Dimension
1,000(L)×6000(W)×985(H)mm
Package weight
110kg
4 Head:
Model
TY-A-M92-3
Max. Weighing (one hopper)
300g
Accuracy
x (0.5)
Max. Scale Interval
0.1g
Max. Speed
85 WPM
Hopper Volume
0.5L
Control System
MCU
HMI
7’’ color touch screen
Power Supply
AC220V ±10% 50HZ/60HZ, 1KW
Packing Dimension
1,000(L)×6000(W)×985(H)mm
Package weight
110kg
Detials:
Solution Units:
① Z-type bucket conveyor ② 1/2/4/8/10/14 head Linear Weigher ③ Working platform ④ VFFS ⑤ Finished product conveyor ⑥ Auto check weigher ⑦ Metal detector
Since 2002, We entered in High-tech industry and TOUPACK has established in 2009.
TOUPACK is the first company in China to apply
Siemens/Allen-Bradley PLC on multi-head weighers.Being a high-tech
company.
TOUPACK has worked as a business partner with Guangdong Meiweixian
(Zhongshan), Anhui Qiaqia (Hefei) and many other well-known
packaging machinery and food companies by supplying them with
automated and intelligent weighing and packaging solutions.
•Wide Range of Product
Working in weighing, packaging, conveying, multi-weight sorting and
detecting machines.
•Product Patents
Almost all of our products have gained CE certificate、ISO9001
certificate，IP65 and IP67 Waterpoorf and
Dustproof certificate.
• Professional R&D Team
The number of skilled engineers take up 63% of total employees.
•10 Years of Customized System Integration
Providing all kinds of customized intelligent weighing and
packaging solutions.
•Complete Technical Support
All of products is at least 12 month warranty and any enquiry will
be responded within 24 hours.
• After-Sale Service
TOUPACK has setup its after-sale service in California, USA and Sichuan and
Shanghai, China.
